Velocity/JBL 4 Channel Harley Speaker System with Amplifier SKU: Velocity-4RZHJ



Free System Design Call Now 1(888)311-0016

Velocity Speakers

The Velocity RZ65H & RZ69H speakers are a huge jump forward in tunability for pro-audio-type speakers on Harley baggers. We built these speakers to sound better out of the box without the typical response issues of horn-loaded pro-audio-type speakers. As compared to all other horn loaded coax type speakers the RZH series are much smoother sounding and people tend to like them a lot better.

These speakers are the best of both worlds

Ultra-high output, and smooth frequency response. Very high efficiency means that you get more output for every watt.

JBL PA1254 Amplifier

Big clean power and unbeatable reliability. This Ultra compact aluminum chassis amplifier with conformal coated PCB board combined with waterproof connections make this amplifier ideal for the Harley harsh condition environment. This amplifier has the perfect amount of power for this speaker system. Selectable internal crossovers make this the perfect amplifier for use with or without a DSP.

Product Description

Radio Flash Required

We offer a free loaner flash tool as well as free tech support. We have a special radio flash procedure specifically for this amplifier with these speakers, so be sure to ask for instructions.

Free Radio Flash Loaner Tool


Flash Your Bike Yourself and Be Sure That the Job Is Done Right

Our flash tool rental kit ships with all of the parts required to flash any Harley touring bike radio from 2014 - current year. The kit ships with a return shipping label for your convenience. After you are finished with the tool simply drop it in the mail and receive a full refund for your $200 deposit.

$120.00 Value!

Read all of the details here


  • 2014 to current year Street Glide, Electra Glide - Drop in fit.
  • 2015 to current year Road Glide requires a heat gun modification to fairing speaker pods for magnet clearance.
  • 2014+ Ultra Limited - This kit adds lid speakers and does not include replacement speakers or connections for the tour pack speakers. We do offer those additional parts and options. Call for more information 1(888)311-0016
  • Speakers Not Waterproof -These speakers are perfect for fair weather riders but should not be used in the rain. The rear 6x9s have an open voice coil.


  • JBL 1 Year
  • Velocity 2 Year standard or 3 year if installed by an authorized Velocity Dealer


Very High Level Performance

Road Glide

Street Glide

  • Much better sounding high frequency than other horns
  • Better low-end punch
  • Great sounding out of the box
  • Loud!


JBL PA1254 Amplifier

  • Max Power
  • 1250W peak
  • RMS Power Output @ 2Ω (full-range)
  • 125W x 4, <1% THD+N
  • RMS Power Output @ 4Ω (full-range)
  • 75W x 4, <1% THD+N
  • RMS Power Output @ 4Ω Bridged (full-range)
  • 250W x 2, <1% THD+N
  • Front selectable hi-pass filter
  • off, 60-, 80-, 120Hz @ 12dB/octave
  • Rear slectable all-/hi-/lo-pass filter
  • 60-, 80-, 120Hz @ 12dB/octave
  • Frequency Response
  • 20Hz – 20kHz
  • Signal-to-Noise Ratio (full-range)
  • >75dB (ref 1W output @ 4Ω)
  • Fuse rating
  • 40A

Velocity RZ65H Speakers

  • Sensitivity: 101db 1W/1M
  • Frequency Response: 100hz - 20khz
  • Nominal Impedance: 4 Ohms
  • RMS/Max: 300W/600W (pair)
  • Outside diameter: 6.625"
  • Mounting Hole: 5.73"
  • Mounting Depth: 3.125"
  • Total Depth: 3.375
  • Bolt Circle: 6.22"

Velocity RZ69H Speakers

  • Sensitivity: 101db 1W/1M
  • Frequency Response: 80hz - 20khz
  • Nominal Impedance: 4 Ohms
  • RMS/Max: 300W/600W (pair)
  • Mounting Depth: 3.75"
  • Total Depth: 4"

What's Included

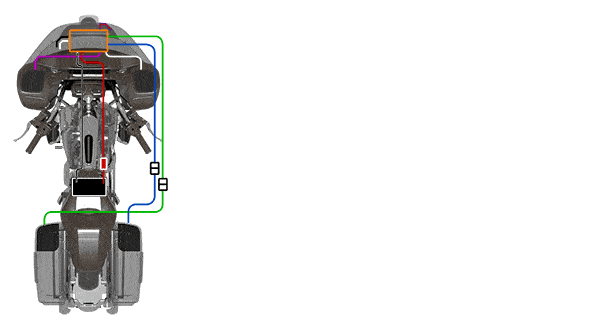

Video: Optional "Make Life Easy Package"

  • 1 JBL PA1254 Amplifier
  • 1 Pair Velocity RZ65H Fairing Speakers
  • 1 Pair Velocity RZ69H Lid Speakers

What's Not Included

  • Optional Plug & Play Wire Harnesses
  • Optional Radio Flash Tool
  • Optional Lid Cut-In Kit
