Hertz SX690 Neo Waterproof 6x9 Speakers SKU: SX 690 Neo.1

$599

Overview

Free System Design Call Now 1(888)311-0016

SX 690.1 NEO is a real beast with a Hi-SPL Mid-Hi unit based on a 1.4” dome tweeter and 1” dome super tweeter with a resettable solid-state protection circuit. Cone is made with nature-proof high stiffness pressed paper featuring innovative water/humidity resistance and anti-UV treatments. The double-layer copper voice coil wound on polyimide former ensures unparalleled power handling. New motors units are made of special Neodymium N38 H to obtain a minimum bulk and increased performance.

Fitment

Fits all standard 6x9 loactions

Warranty

  • 1 Year

Features

Water Proof

Very High Level Performance

Road Glide

Street Glide

1. Nature-proof high stiffness pressed-paper cone featuring innovative water/ humidity resistant and anti-UV treatments.

2. Durable Extreme SPL performance in a compact size & light-weight thanks to the N38 H Neodymium grade magnet.

3. Unparalleled power handling delivered by the double-layer copper voice coil, wound on polyimide former.

4. Hi-SPL Mid-Hi unit based on 1.4” dome tweeter and 1” dome super tweeter with resettable solid-state tweeter protection circuit.

5. Double faston terminals allow daisy-chaining of multiple units and provide compatibility with the most common motorcycle connections.

6. Provided elegant grille made with a high-resistance ABS plastic structure with a metallic finish combined with a protective metal mesh.

Specifications

  • Size mm (in.)    in. 6 x 9
  • Power Handling - Continuous W    130
  • Power Handling - Peak W    260
  • Impedance Ohm    4
  • Tweeter diaphragm mm (in.)    29 (1.14)
  • Woofer Voice Coil Ø mm (in.)    38 (1.5)
  • Tweeter Voice Coil Ø mm (in.)    25 (1)

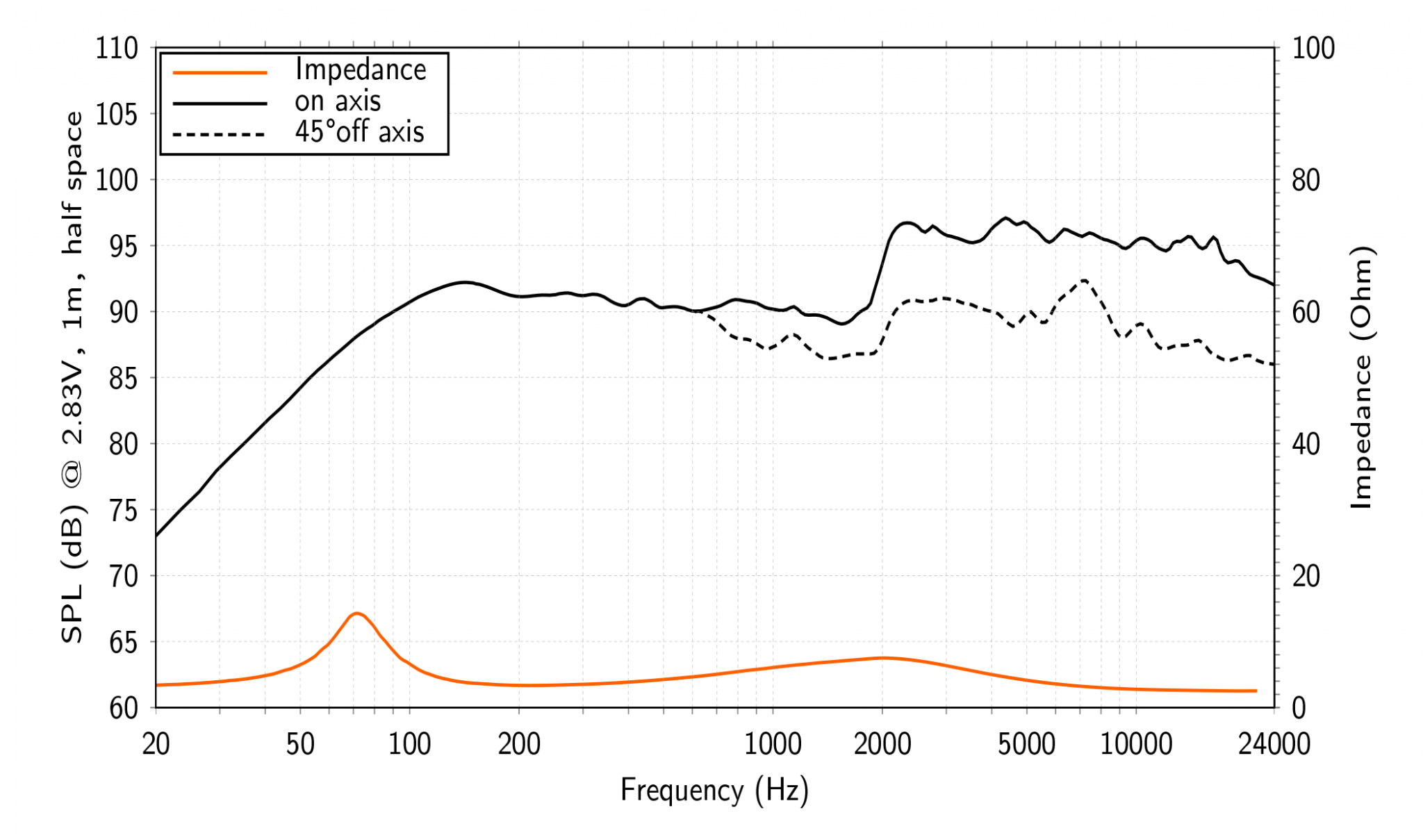

  • Frequency Response Hz    65 ÷ 24k
  • Woofer Magnet size D x d x h mm (in.)    110 x 45 x 20 (4.33 x 1.77 x 0.79)
  • Tweeter Magnet size D x h mm (in.)    24,5 x 6 x 3,5 (0.96 x 0.24 x 0.14)
  • Weight of one speaker kg (lb.)    1,69 (3.73)
  • Woofer Magnet    Special Neodymium N38 H
  • Tweeter Magnet    Special Neodymium N38 H
  • Cone    Water repellent pressed paper
  • Dome    Tetolon

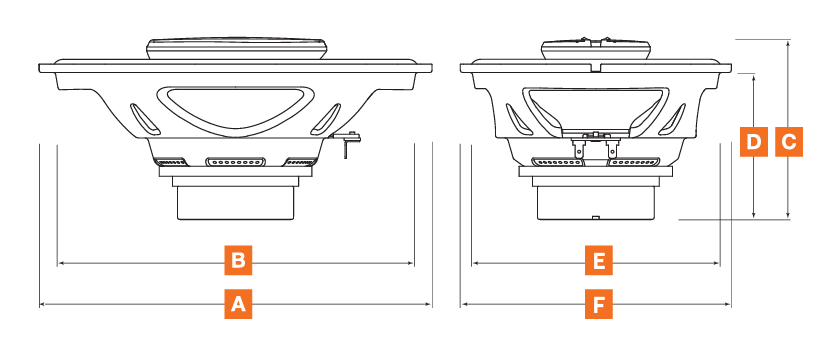

  • A237,5 mm9.35 in.
  • B225 mm8.86 in.
  • C93 mm3.66 in.
  • D85 mm3.35 in.
  • E163 mm6.42 in.
  • F154 mm6.06 in.

What's Included

  • 1 Pair 6x9 Speakers
