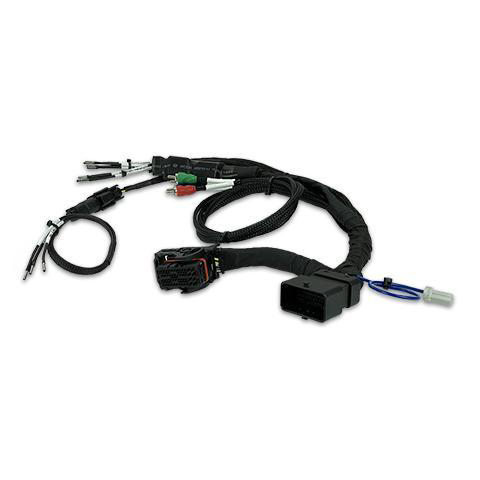

Factory Radio T Harness: Amplifier Signal 14+ SKU: WH-14-FRT

$169.99

Overview

Free System Design Call Now 1(888)311-0016

This Is the Part You Need! Adding an Amplifier to Your 2014 or Newer Harley Davidson Touring Bike Has Never Been Easier.
True Plug & Play! This is the very best way to integrate an aftermarket amplifier with the factory radio of any '14 or newer Harley bagger. This harness gives you all of the connections and features you could want and it works with all variations of Harley stereo systems from basic to CVO Ultra models, both factory-amplified and non-amplified.

This Part Replaces All of the Following Harnesses.
Which makes it the best deal and the cleanest and easiest way to go.

  1. 2014-Up Harley Plug & Play Signal Adapter 14FPNP
  2. 2014-Up Harley Plug & Play Rear Signal Adapter
  3. Stealth Accessory Harness Power Tap
  4. Rear Harley Speaker Wire Harness for Bags or Tour Pack
  5. Stealth Power Tap Harness for Battery & Ground
  6. Harley Speaker Pod Plug Adapters for Fairing Speakers


Fitment



  • Compatible Year - 2014+
  • Compatible Model - Street Glide, Road Glide, Electra Glide, Ultra
  • Location - Fairing
  • Additional Adapter Required - No, unless factory amplified
  • Modification Required - No
  • Plug & Play - Yes
  • Works with Electric Lid Locks - N/A

Does not work directly with Sound Digital or Dayton amplifiers/DSP as those amplifiers and sound processors are not designed to take advantage of full speaker level signal over an RCA connection.


Warranty

5 years

Features

Extreme Level Performance

Road Glide

Street Glide

  • Speaker Connections. Integrated wire connectors function both as butt connectors for amplifiers with pigtail speaker connections as well as wire ferrules for amplifiers with Allen screw-type speaker connections. So there is no need to go looking for additional wire connectors.
  • RCA Out. Front and rear high voltage balanced (speaker level) RCA out from factory radio.
  • Plug & Play Accessory Input. This connection provides accessory power for an optional DSP.
  • DSP Power Sub Harness. This connection provides power, ground, and accessory for an optional (highly recommended) DSP such as a DSR1. So there is no reason to cut into the factory wire harness for power.
  • True Plug & Play! No cutting any factory wires.
  • Both front and rear (4 Channel) RCA out from factory radio (balanced speaker level on RCA, requires an amplifier or DSP that is designed to accept speaker level in on RCA connection).
  • Front and rear speaker connections for factory locations.
  • Built-in load resistors keep factory radio happy and eliminate distortion.
  • Accessory, battery, and ground outputs for powering DSP without the need for any additional parts or plugs.
  • Wire ferrules and crimp connectors built into the harness. No extra connectors needed.
  • 100% developed and designed by American Hard Bag in the USA.


Specifications

Speaker level signal over RCA - not a low level signal

What's Included

(1) Radio T Harness
